ACCON-MPI-Adapter USB

ACCON-MPI-Adapter USB

$323.00

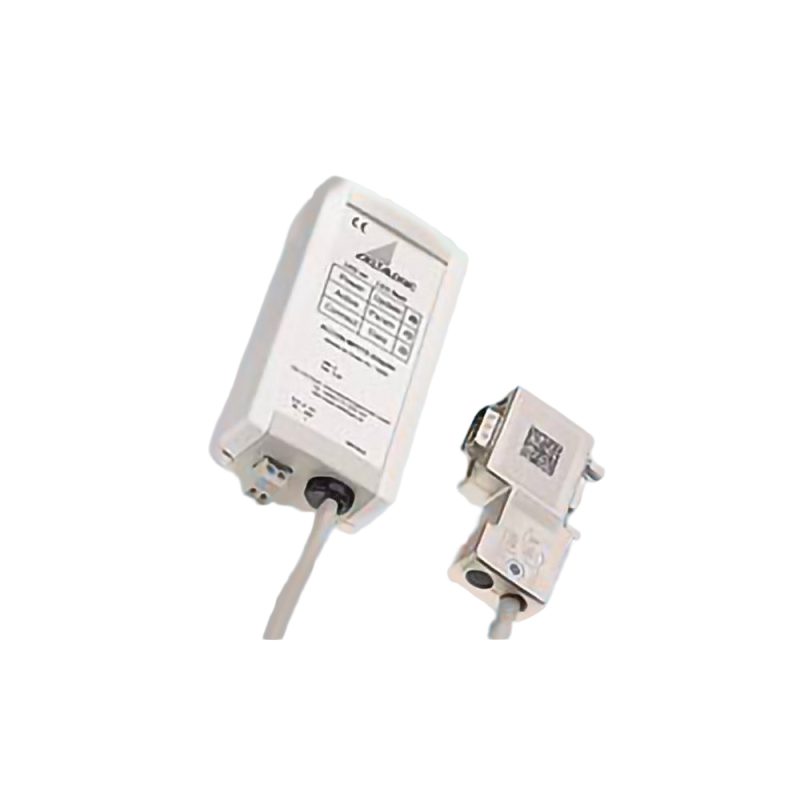

The ACCON-MPI-Adapter USB allows connecting a PC to the MPI interface of a S7 PLC via USB.

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Product Description

Description

A S7 adaptor for the direct access via USB

The ACCON-MPI-Adapter USB allows connecting a PC to the MPI interface of a S7 PLC via USB.

Perfect fields of application

  • As programming adapter to create and change the PLC program.
  • As communication adapter for visualizations
  • As communication adapter for accessing the PLC’s data

Varied ranges of application

  • Programming S7 PLCs with STEP 7
  • Connecting visualizations with S7 PLCs
  • Logging S7 data (e.g. with ACCON-S7-EasyLog)

Convincing and varied

The ACCON-MPI-Adapter USB uses the same communication protocol like the PC Adapter. Thus, the ACCON-MPI-Adapter USB can used with any software supporting the PC Adapter.
A software creating a virtual serial interface is included in delivery of the ACCON-MPI-Adapter USB. Any software supporting serial connections to the S7 PLC can therefore use the ACCON-MPI-Adapter USB.

Technical highlights

  • Low-cost solution for programming and visualizing via USB
  • MPI speed up to 187.5 Kbps
  • Voltage supply via USB
  • Virtual serial interface for flexible applications

Technical data

Supported operating systems Windows 2000 and Windows XP
Connection to the PC Via included USB cable (ca. 3 m)
Connection to the PLC 9-pin SUB-D plug, cable stationary mounted (ca. 1.2 m), max. 187.5 Kbps
Supported PLCs S7-300, S7-400
Weight in kg Ca. 0.18
Dimensions (W x H x D) in mm 54 x 105 x 30
Protection type IP 20
Supply voltage Via USB
External voltage feed possible No
Power consumption Max. 150 mA
Operating temperature 0 °C to 55 °C
Storage/transporting temperature -20 °C to 55 °C
Allowed relative humidity Operating 5 % to 85 % at 30 °C, storage 5 % to 93 % at 40 °C
